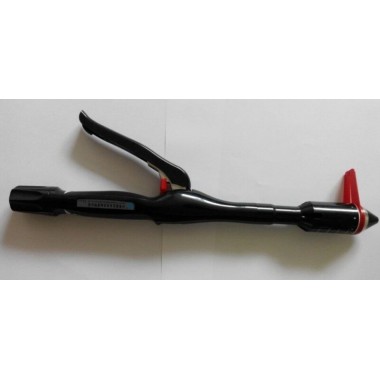

Disposable Anorectal Stapler

Single-use Anorectal Stapler

Anorectal Stapler

Circular Stapler

Disposable Anorectal Stapler and Components

Disposable Circular Anorectal Stapler

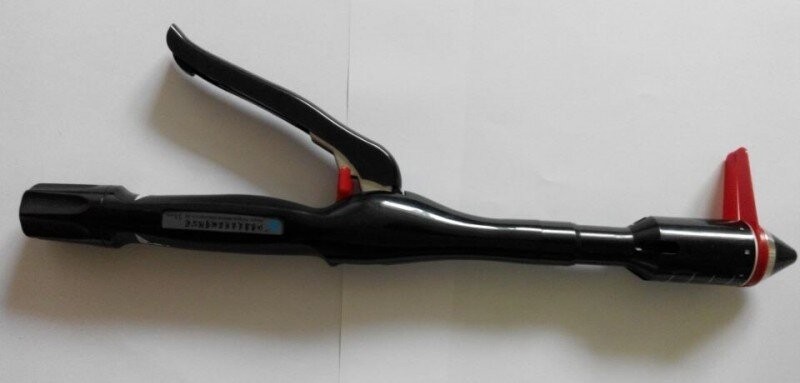

Product IntroductionProduct Performance, Structure and CompositionThe disposable anorectal stapler consists of anvil (1Cr18Ni9), positioning rod, stapling and cutting assembly, safety button, movable handle, fixed handle, adjusting nut, knife gasket, circular cutting blade, staples (TA1, TA2) and accessories (ABS). The accessories include obturator sleeve, supporting sleeve, anal plug and thread carrier.This stapler is available in three specifications based on the diameter of the assembly. Each specification has two types classified by staple height. The product is supplied sterile.Scope of ApplicationIt is used for selective resection of mucosa above the dentate line.Instructions for Use

1. The product shall be used in accordance with general operating guidelines for staplers. Operators shall be proficient in the procedures of stapling and resection of superior hemorrhoidal mucosa.
2. Prior to use, carefully inspect the individual package for damage and check all components inside the package.
   1. 1 pc of anorectal stapler
   2. 1 pc of obturator sleeve
   3. 1 pc of supporting sleeve
   4. 1 pc of anal plug
   5. 1 pc of thread carrier
3. If any damage is found or suspected to the product, accessories or package, discontinue use immediately and contact our representative.
4. Operating Procedures for Anorectal Stapler
   1. Assemble the supporting sleeve and anal plug, insert the assembly into the anal canal and fix the supporting sleeve (suture fixation is acceptable).
   2. Remove the anal plug and insert the obturator sleeve to perform purse-string suture.
   3. Perform a full circumferential submucosal suture at 3.5 cm to 4 cm above the dentate line.Caution: For female patients, avoid suturing the posterior vaginal wall mucosa.
   4. Rotate the PPH stapler to its maximum opening (approx. 5.5 cm). Insert the front end to the proximal side of the suture site, then ligate and tie the suture to wrap the tissue evenly around the central rod.
   5. Draw out both ends of the suture respectively through the two side holes of the PPH stapler using the thread carrier, then tie the knots. Reserve proper length for finger traction.
   6. Keep the front end of the PPH stapler in place and align it with the supporting sleeve. Rotate the adjusting nut to close the instrument, and pull the suture gently to guide the tissue into the cavity at a steady speed. Do not pull forcibly.Caution: Keep the front end fixed and ensure the instrument moves forward during closure.
   7. Stop traction and hold the position when the red indicator pin appears in the observation window.
   8. Continue rotating the adjusting nut until the red pin enters the green zone. Determine the firing position according to the thickness of mucosal tissue. Firing must be performed within the green zone.
