Weifang Zhuohui Trading Co., Ltd.

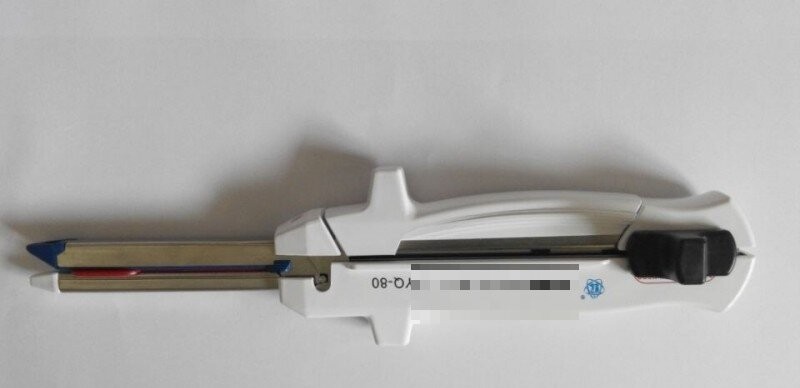

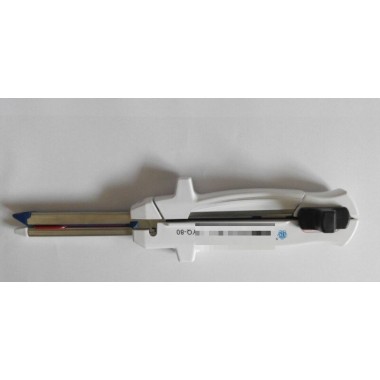

Disposable Linear Cutter Stapler

Staple Cartridge

Stapler Staple Cartridge

Linear Cutter Stapler

Replacement Staple Cartridge

Stapler & Staple Cartridge

Product DescriptionProduct Performance, Structure and CompositionThe disposable linear cutter stapler is composed of staple cartridge, anvil support, cartridge support, anvil support cover, movable handle cover, firing button, staples (TA1, TA2), cutting blade (1Cr18Ni9) and cartridge cover. The staple cartridge (QD) consists of cartridge cover, cartridge body and staples.It is available in six models by effective cutting length. Each model has three types classified by staple height: 3.85 mm, 4.2 mm and 4.5 mm. Each disposable linear cutter stapler is delivered with one matched cartridge assembly. The product is supplied sterile.Indications for UseIt is used for creating anastomoses and closing stumps or incisions in digestive tract reconstruction and resection surgeries of other organs.Instructions for Use

1. Take the device out of the package in a sterile clean area. Handle it gently to prevent damage.
2. Open the movable handle cover, separate the cutting assembly from the anvil, and remove the cartridge cover.
3. Clamp the tissues to be cut and anastomosed between the staple cartridge and the anvil support. Press the movable handle cover fully until it is locked. Ensure the cover is completely seated.
4. Hold the stapler. Use the thumb and index finger of the other hand to push the firing button gently forward to the pre-firing position (the cutting blade remains inactive with light resistance). Then push steadily forward to the extreme end. Increased resistance indicates the cutting blade is cutting tissues while stapling tissues on both sides simultaneously.
5. Return the firing button to its home position (marked in red on the device). The device will lock automatically and cannot be fired a second time.
6. Do not pull out the stapler immediately after resetting. Release the movable handle cover, separate the staple cartridge from the anvil support, and withdraw the device. The procedure is completed.
