Weifang Zhuohui Trading Co., Ltd.

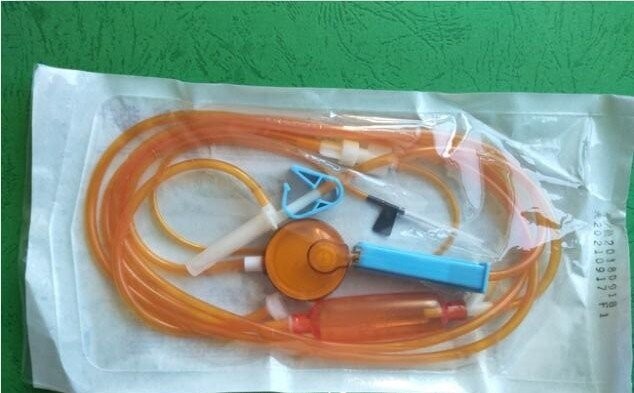

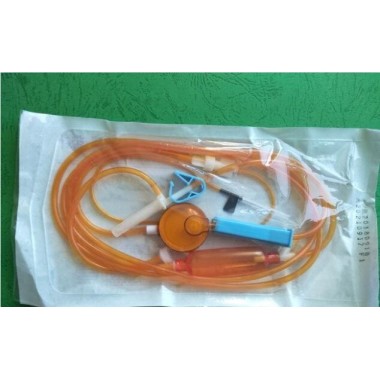

Disposable Light-proof Precision Filter Infusion Set with Needle

Infusion Set

Product DescriptionProduct Structure and CompositionThis product consists of spike protective cap, spike, tubing, air inlet component, medication port (available on partial models), latex cap (available on partial models), three-way connector (available on partial models), long two-way connector (available on partial models), drip chamber, short two-way connector (available on partial models), anti-bubble device (available on partial models), precision liquid filter (nominal pore size: 2.0 μm, 3.0 μm, 5.0 μm), flow regulator, clamp, male luer connector and intravenous infusion needle.The tubing and drip chamber are co-extruded materials, with the inner layer made of thermoplastic polyurethane (TPU) and the outer layer of light-proof polyvinyl chloride (PVC). The product is sterilized with ethylene oxide, for single use only. It is sterile and non-pyrogenic.Indications for UseIt provides light protection within the wavelength range of 290 nm ~ 450 nm. It is intended for the infusion of photosensitive drugs including Cisplatin Injection, Vitamin K₁ Injection, Vitamin B₆ Injection and Levofloxacin Hydrochloride and Sodium Chloride Injection. For gravity infusion only.Instructions for Use

1. Open the package and use immediately. Insert the spike into the infusion container.
2. Allow the liquid to fill half of the drip chamber, purge all air from the tubing, then close the flow regulator.
3. Perform venipuncture in accordance with standard clinical practices and adjust the drip rate. 20 drops of distilled water delivered from the drip chamber equal (1±0.1) mL [(1±0.1) g].
4. The dual-spike version can be connected to two infusion containers simultaneously for concurrent infusion or emergency solution replacement. When using a single container, keep the clamp on the unused spike closed. All other operations shall follow the above steps.
