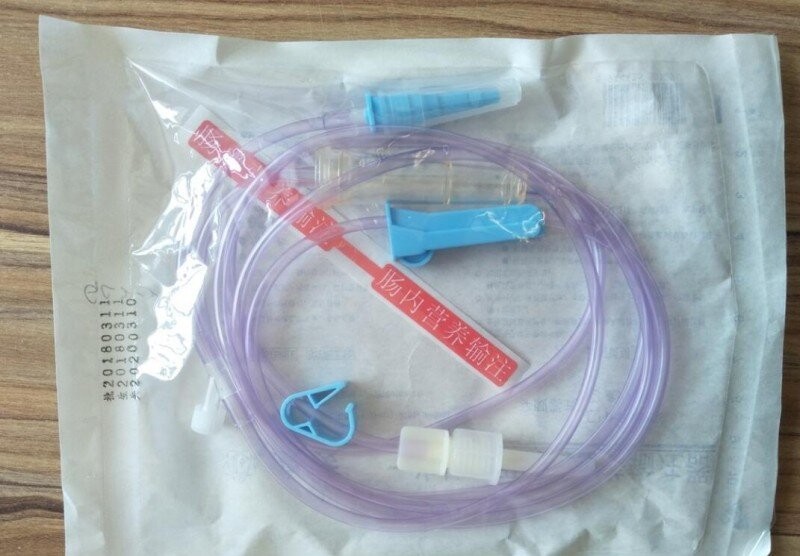

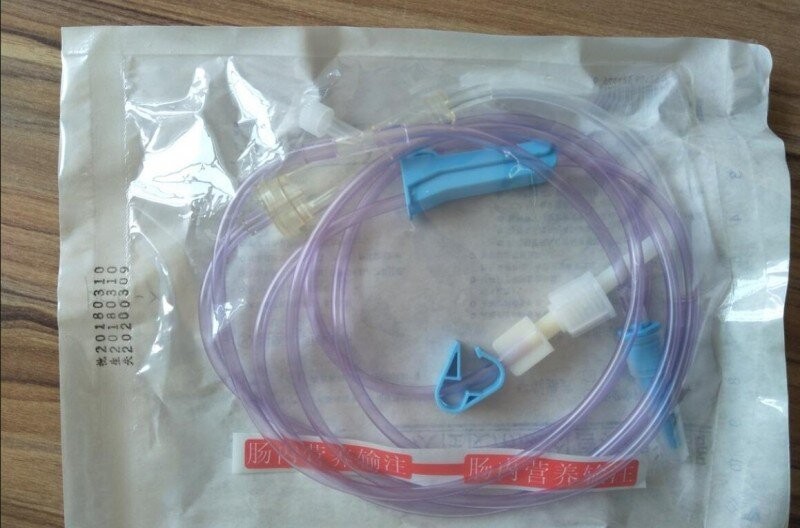

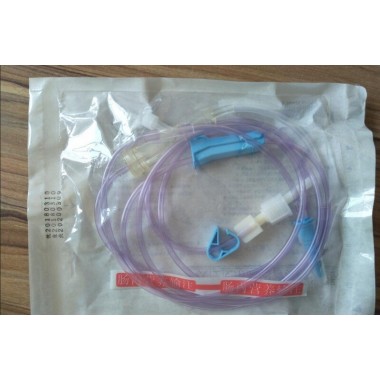

Disposable Enteral Feeding Set

Disposable Enteral Nutrition Administration Set

Feeding Set / Administration Set

Enteral Nutrition

Product DescriptionProduct Performance, Structure and CompositionThis product consists of spike protective cap, bottle spike, air inlet unit (with filter membrane), reservoir bag cap, reservoir bag, tubing, clamp, upper drip chamber cover, drip chamber, silicone tube, two-way connector, magnetic activation ring, flow regulator, cassette connector, silicone tube support, silicone tube retainer, three-way connector, cap, female luer connector, coupling connector and protective cap.Classified by clinical application, it is divided into pump-assisted type and gravity type. By structural form, it is categorized into spike type and reservoir bag type.

• PC: Spike-type enteral feeding set for feeding pump
• PD: Reservoir bag-type enteral feeding set for feeding pump
• GC: Gravity spike-type enteral feeding set
• GD: Gravity reservoir bag-type enteral feeding set

The spike protective cap and cap are made of polyethylene, complying with YY/T 0114-2008. The protective caps and silicone tube supports are made of polypropylene, complying with YY/T 0242-2007. The reservoir bag cap, reservoir bag, tubing, two-way connector, upper drip chamber cover and drip chamber are made of PVC, complying with GB 15593-1995. The bottle spike, female luer connector, coupling connector, cassette connector, clamp, flow regulator, three-way connector and silicone tube retainer are made of ABS, complying with GB/T 12672-2009. The silicone tube is made of silicone rubber. The product is sterilized with ethylene oxide and supplied sterile.Indications for UseUsed with enteral feeding pumps or matching feeding sets for delivery of enteral nutrition solution to human body.Instructions for Use

1. Open the package and use immediately. Close the clamp and flow regulator.
2. For spike type: Remove the spike protective cap, insert the bottle spike into the nutrition container, and open the air inlet unit (if equipped).For reservoir bag type: Open the reservoir bag cap, pour in the prepared quantitative enteral nutrition solution, tighten the cap, shake thoroughly and hang the bag on an IV stand.
3. Open the clamp and flow regulator, and remove the protective cap from the connector. Fill the entire tubing with nutrition solution and ensure no air bubbles remain inside, then close the flow regulator.
4. For use with feeding pump
   1. Place the silicone tube into the tube slot of the enteral feeding pump.
   2. Connect the coupling connector to the nasogastric tube.
   3. Set the flow rate on the feeding pump as required, turn the flow regulator to the maximum flow, then start the pump for tube feeding.
   4. To flush the tubing or administer medication, unscrew the cap before operation. Screw the cap tightly immediately after completion.
5. For gravity infusion
   1. Connect the coupling connector to the nasogastric tube.
   2. Adjust the flow regulator to the desired flow rate for tube feeding.
   3. To flush the tubing or administer medication, unscrew the cap before operation. Screw the cap tightly immediately after completion.
