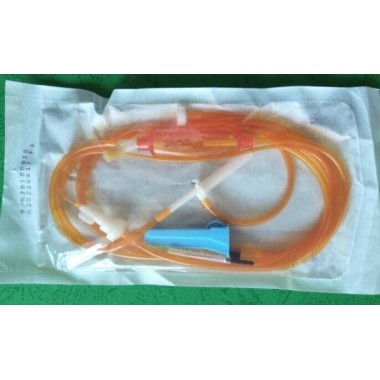

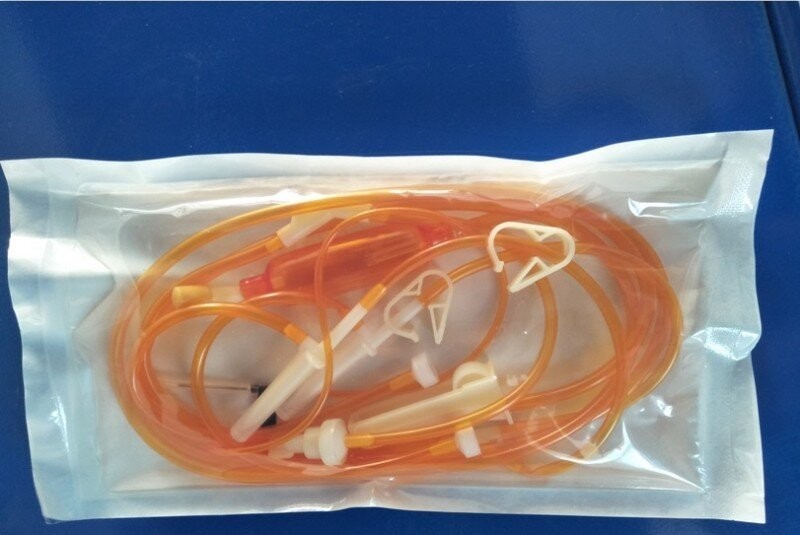

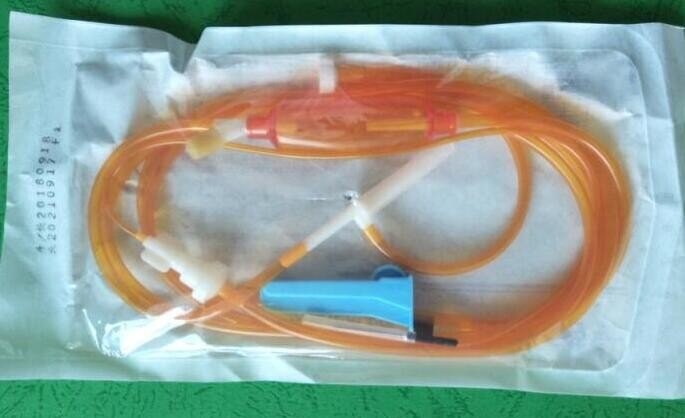

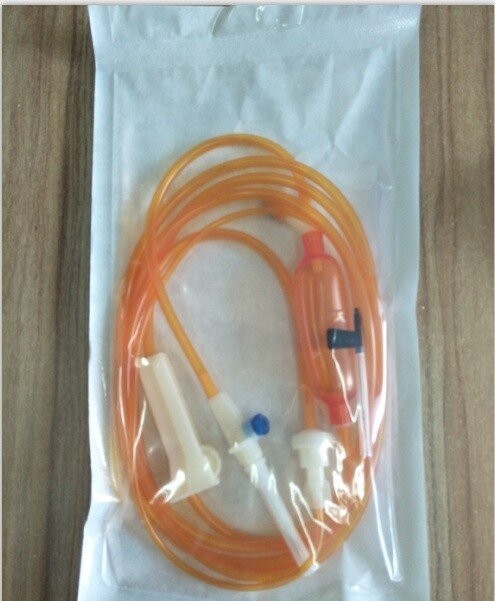

Single-use Light-proof Infusion Set with Needle

Disposable Light-shielding IV Set with Needle

Infusion Set / IV Set

Light-proof Infusion Set

light-proof /light-shielding

Product DescriptionProduct Performance & StructureThis product is composed of spike protective sheath, spike, tubing, air inlet component, medication port (available on partial models), latex cap (available on partial models), three-way connector (available on partial models), long two-way connector (available on partial models), drip chamber, short two-way connector (available on partial models), anti-bubble device (available on partial models), liquid filter, flow regulator and clamp (available on partial models), as well as intravenous infusion needle.The infusion tubing and drip chamber are co-extruded materials: the inner layer is made of thermoplastic polyurethane elastomer (TPU), and the outer layer is light-shielding polyvinyl chloride (PVC). The product is sterilized with ethylene oxide, for single use only. It is supplied sterile and pyrogen-free.Intended UseWith a light shielding range of 290nm ~ 450nm, this product is suitable for infusion of photosensitive drugs including Cisplatin Injection, Vitamin K₁ Injection, Vitamin B₆ Injection, Levofloxacin Hydrochloride and Sodium Chloride Injection, and Sodium Nitroprusside for Injection. It is only for gravity infusion.Instructions for Use

1. Use immediately after opening. Insert the spike into the infusion bottle.
2. Allow the liquid to fill half of the drip chamber, expel air from the infusion tubing, then close the flow regulator.
3. Perform venipuncture in accordance with standard practices and adjust the drip rate. 20 drops of distilled water equal (1±0.1) mL [(1±0.1) g].
4. The dual-spike type can be inserted into two infusion containers simultaneously for simultaneous delivery of two solutions or emergency solution replacement. For single-container infusion, keep the clamp on the unused spike closed. Other operations are the same as specified above.
